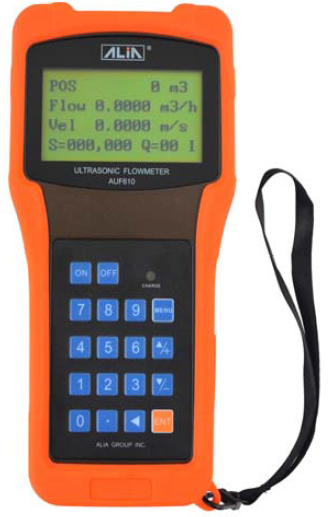

Portable Transit-Time Ultrasonic Flowmeter
Model AUF610PE Series

AUF610PE series is a portable transit-time ultrasonic flowmeter with clamp-on transducers for non-invasive liquid measurement. Based on microprocessor and programmable flow measurement techniques the process flow can be accurately measured without interrupting the flow and with low installation costs.

Features

  • 4 line LCD to display flowrate, totalizer signal condition..etc
  • The flowmeter is designed in high accuracy +/-1.0%
  • Small sized (206 * 100 * 35mm) light-weight (600g)
  • Wide range, Velocities ( 0.01 ~ +/- 32 m/s)
  • Ni-MH Battery lasts for over 10 hours continuous operation
  • Maximum temperature 160 °C
  • Transducers for pipes size from 15 to 6000 mm ((1/2" ~ 240")
  • Built-in magnet in transducers, no need for steady tool on metal pipe
  • Data logger which records flowrate, date, total flow, signal condition..etc
  • Response time less than 1 second
